Hammer Type Pulverizer
The Hammer Type Pulverizer is a highly versatile grinding machine widely used across various industries. Whether you are processing spices, grains, herbs, or minerals, this robust machine delivers exceptional performance. In fact, the Hammer Type Pulverizer operates with a high-speed rotor equipped with multiple hammers or blades that rotate rapidly to achieve efficient and uniform grinding.
Design & Options
Production capacity: 100 kg to 1000 kg per hour
Noise level: 90–100 dB
Moreover, it offers economical milling to D90 < 45 µm
In addition, the machine is easy to operate and maintain
Available in mild steel, stainless steel, and with wear protection options
Furthermore, pressure shock-resistant models enhance operational safety
Very durable and reliable designs ensure years of consistent production
Compact and easy-to-clean design improves usability
Suitable for masala, pharmaceutical, food, and mineral applications
Additionally, cryogenic grinding is possible with this advanced system
Key Benefits
Therefore, if your operation requires a durable, reliable, and highly adaptable grinding solution, the Hammer Type Pulverizer is an excellent choice. Moreover, its wide range of customizable options ensures it can meet diverse production requirements with ease
Specification
MODEL | SIZE | HAMMERÂ SIZE | RPM | MOTOR |
BM12 | 12×6 | 8mm | 3600 | 10 hp |
BM16 | 16×10 | 8mm | 3600 | 15 hp |
BM18 | 18×14 | 10mm | 2800 | 25 hp |
BM25 | 25×16 | 12mm | 2800 | 40 hp |
BM32 | 32×20 | 16mm | 1800 | 50 hp |
BM36 | 36×22 | 16mm | 1500 | 60 hp |

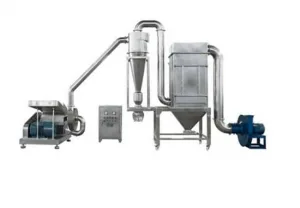

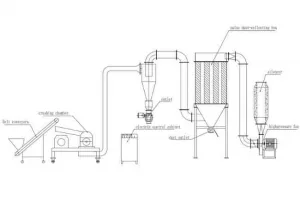

- Complete as per our standard supply fitted with set of hammers, liners, feed hopper, V-pulley for mill and three numbers of M.S. Perforated screen, each of 0.5 mm,1.0 mm, and 3.0mm diameter hole.
- Rigid M.S. Frame for mounting the machine.
- Cyclone collector fabricated out of 14 M.S. Sheet, with M.S. Ducting.
- Set of cloth filter bags.
- Mounting arrangement for filter bags.
This Hammer Mill Pulverizer Set is truly an amazing piece of machinery that is known for its exceptional versatility. Whether you want to grind spices, make powder, or reduce the size of materials, this tool can do it all. Moreover, it is built to withstand heavy-duty grinding tasks that require a lot of power.
One of its most significant advantages is that it operates virtually dust-free. As a result, you can experience a safer and cleaner workplace environment, as there is minimal risk of dust particles contaminating the air. In addition, you’ll be pleased to know that this machine is also oil-resistant, making it capable of crushing oily materials with an oil content of fewer than 20%. Furthermore, it can achieve a final size of 30–80 mesh, delivering a consistency that meets your exact requirements.
With this machine, you can crush herbs and other root materials that have a high fiber content effectively. Additionally, the crushing size can be easily controlled with a screen, and it allows for continuous production at normal temperatures. Therefore, this pulverizer set is a new-generation tool that comes with a unique grinding and pulse dust absorption system. You can rely on it to deliver powerful and consistent results that will exceed your expectations.
